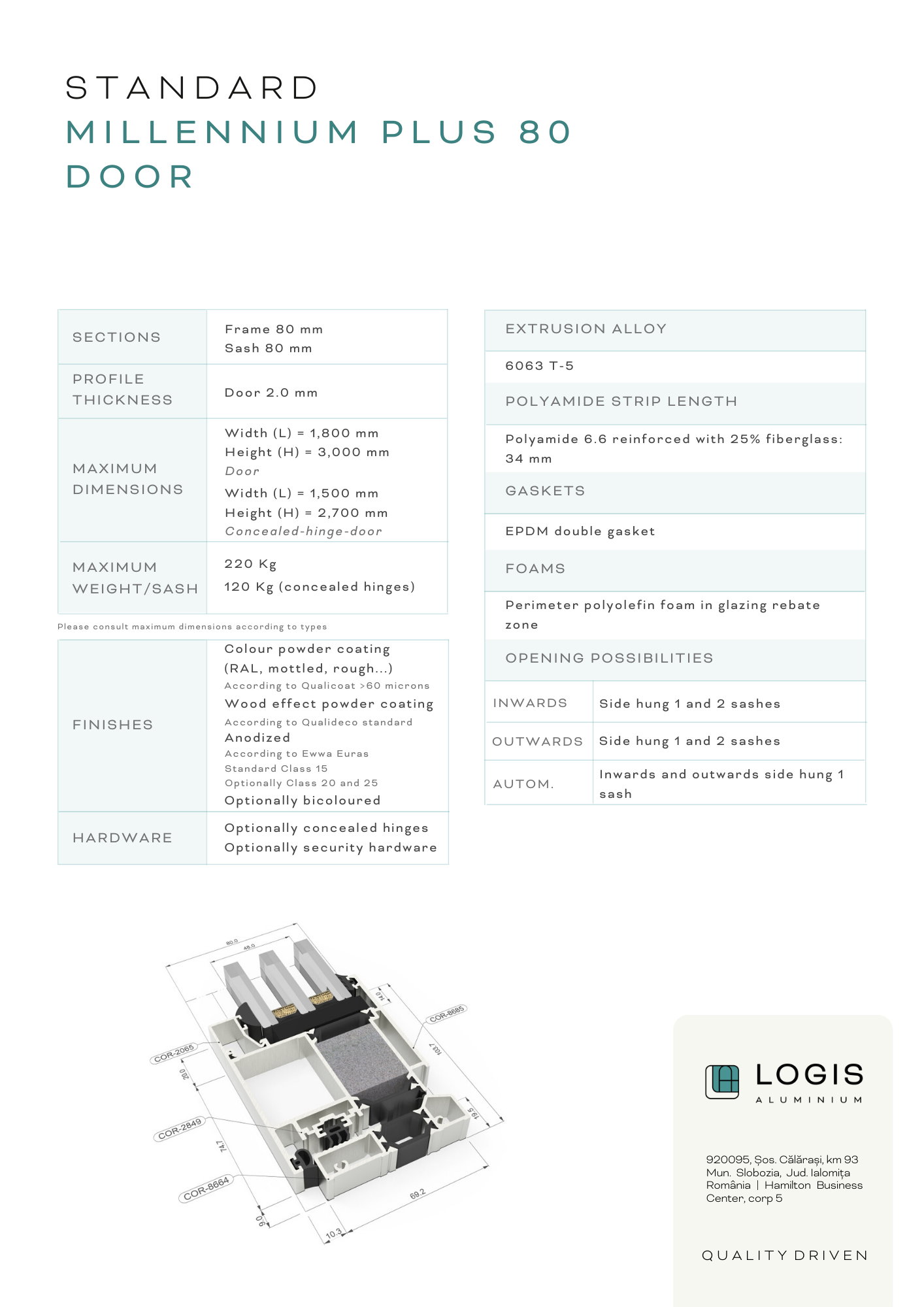

MILLENIUM PLUS 80

Millenium Plus 80 is a new system for coplanar pedestrian doors with 80 mm straight lines and Thermal Bridge Break for commercial spaces and buildings.

Door transmittance level starts at 0.8W/m2K with excellent thermal performance and glass thickness up to 64mm for maximum acoustic insulation.

2 types of hinges may be used, either high strength hinges (applied or reinforce in channel) able to carry up to 220kg/wing or hidden hinges (height 2700 mm, width 1500 mm and 120kg/wing with maximum wing opening: 100º).

The system provides ground level finishin and can be used for emergency exits with anti-panic devices (according to EN 179 and EN 1125). Several customization options are available, especially motorized swing opening or panel covering to allow only visibility)

Maximum glass thickness - 64 mm
Opening possibilities:

Interior opening: swing door with 1 or 2 wings

Exterior opening: swing door with 1 or 2 wings

Automatic opening: exterior with 1 wing

Cross sections - Frame – 80 mm / wing – 80 mm
Profile thickness - Window 2,0 mm
Polyamid bar length - 34 mm
Door maximum dimensions – Width (L) = 1.800 mm / Height (H) = 3.000 mm
Door with hidden hinges maximum dimensions - Width (L) = 1.500 mm / Height (H) = 2.700 mm
Maximum weight - 220 Kg for high strength hinges and 120 Kg for hidden hinges
Finish – bicolor option / paint / eloxidize

Thermal transfer coefficient - Uw from 0,8 (W/m²K)

Maximum acousting insulation - Rw = 40 dB

Air permeability - (UNE-EN 12207:2000) CLASS 4

Waterproofing - (UNE-EN 12208:2000) CLASS 6A

Wind resistance - (UNE-EN 12210:2000) CLASS C4

Reference test 1,20 x 2,30 m 2 wings.

Soft body impact resistance - (UNE-EN 13049:2003) CLASS 5 (max)

Reference door 1,80 x 2,20 m 2 wings. Laminated glass 3+3.

Repeated opening and closing resiliance - (UNE-EN 1191:2000) 500.000 cycles

Reference door 0,935 x 2,10 m 1 wing

>>
